SKU LMGBOX

Product Information:

This Lockmaster gearbox is a genuine replacement for the gearboxes found on Lockmaster, Goldline and Mila Master multipoint locks. This gearbox is available with a 35mm backset or 45mm backset, features a latch and deadbolt and is unsprung.

This version is a double spindle (92/62PZ).

45mm versions use a 35mm case with extended latch and deadbolt with a 10mm packer piece.

Operation: Lift lever or double spindle

Latch reversal: Undo the screw in the latch to remove. Reverse and reinsert then replace screw.

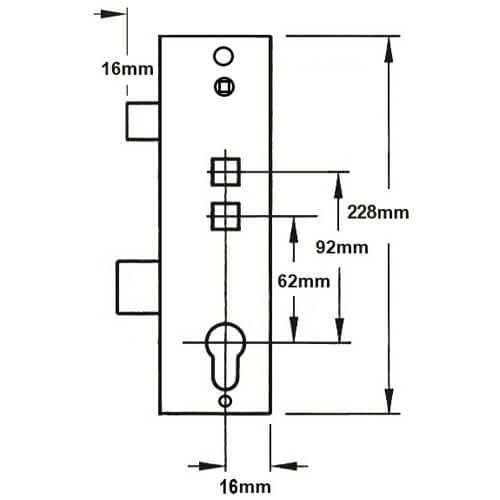

Specifications:

• Case Height: 228mm

• Case Width: Backset + 16mm

• Centres: 92mm/62mm

• Backset: 35mm or 45mm

• Spindle: Double 8mm

• Packaging: Supplied in singles
